Impulse Downhole
Focused on improving the horizontal drilling process

Friction Reduction

Friction Reduction

POWER PULSE® – Patented Technology

POWER PULSE® – Patented Technology



PowerPulse™

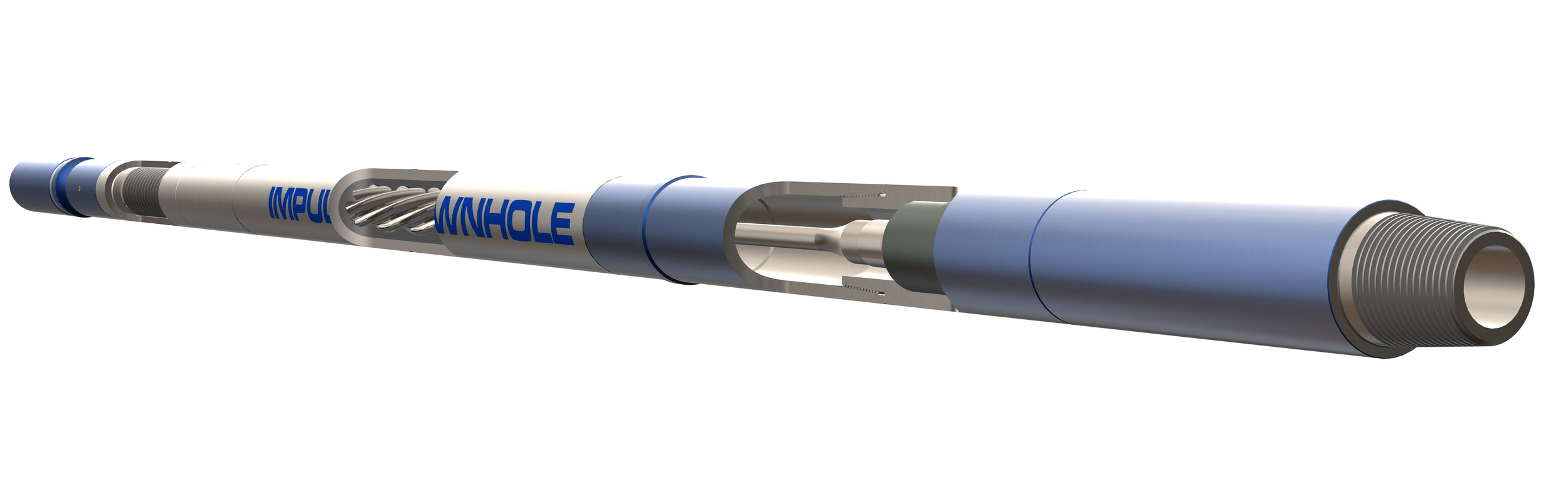

Constant vibration – An axial oscillating friction reducing tool that is activated as soon as the rig pumps are activated. This can be run in tandem with an ActiPulse® tool to give a systematic approach to a long reach horizontal in deeper applications.

  • Adjustable operating frequency

  • Adjustable flow restriction to accommodate higher mud weights and flow rates

  • Lower operating pressure to allow for more efficient drilling operations

    Click here for Friction Tool Portfolio


ACTIPULSE® – Patent Pending

ACTIPULSE® – Patent Pending




ActiPulse™

Vibrational Energy On Demand – An axial oscillating friction reducing tool that is designed to be activated via an activation ball dropped from surface. The tool is designed with the option to run multiple tools in series for long reach horizontals or complex directional profiles. The tool is then activated as the lateral is advanced thus giving an extremely efficient spread of energy across the entire drill string.

  • Activated via drop ball from surface

  • Adjustable operating frequency

  • Tool is redressed in field which extends tool life between servicing

  • Adjustable flow restriction to accommodate high mud weight and high flow rate scenarios

  • Designed with the capability to run multiple tools in series

  • Lower operating pressure to allow for more efficient drilling operations

Click here for Friction Tool Portfolio

Patent Pending

High Torque Series-HT

The high torque series was developed to better handle more aggressive drilling environments and more complex directional profiles. These tools are designed so that every connection within the outer body of the tool is rated to HT specifications.

The HT series is available in both ActiPulse™ and PowerPulse™ technologies. This provides added assurance in dual and triple tool applications where higher torque will be encountered in the drill string the further back to surface the tools are placed.

The tools are currently available in 127mm (5”), 133mm (5.25”) and 165mm (6.5”) sizes.

The same benefits as our standard tool fleet coupled with an HT connection enables these tools to outperform competitor designs in the harshest drilling environments.

Click here for Friction Tool Portfolio
